Laser‑based Unmanned Anti‑Cheating Truck Weighbridge System
Laser‑based Unmanned Anti‑Cheating Truck Weighbridge System
Product Overview

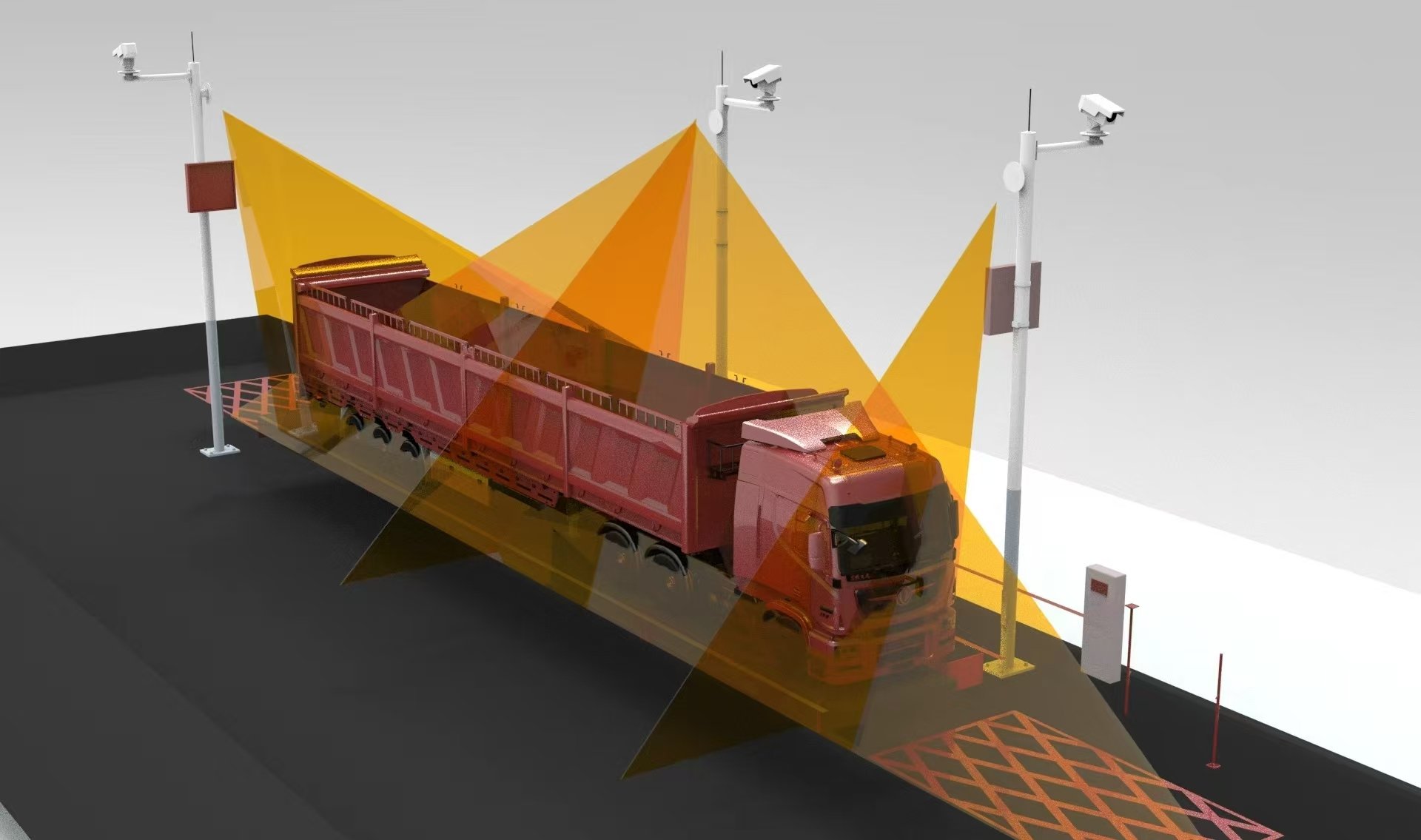

Our Laser‑based Unmanned Anti‑Cheating Truck Weighbridge System is a self‑developed industrial‑grade intelligent weighing solution built on embedded Linux platform. Designed for harsh open‑air working conditions in mines, cement plants, chemical sites, ports and logistics yards, it integrates high‑performance patent laser radar, volume measurement, automatic vehicle identification, video snapshot and full‑process data management. The system realizes fully unattended truck weighing, automatically outputs cargo volume and weight for empty & loaded trucks, generates real‑time 3D point‑cloud models, and effectively blocks multiple weighing cheating behaviors. It supports 24/7 non‑stop vehicle passing with reliable data storage and remote management functions.
Core Advantages
- High‑precision Automatic Volume & Weight Measurement
Automatically calculate cargo volume and weight for empty and loaded trucks. Volume measurement accuracy optional: ＜1%, ＜2%, ＜3%. Real‑time 3D point‑cloud model output for cargo status reproduction. - Industrial‑grade Stable Operation
Adopt fully self‑developed embedded Linux architecture, no system crash risk and zero‑loss data storage. Supports continuous 24×365‑hour operation. Wide working temperature range: ‑30℃ ~ +60℃, customized for extreme weather. - Patented Laser Radar (Model JXKJ300)
Class‑1 eye‑safe 905nm LiDAR with IP67 protection rating. 360° horizontal field‑of‑view, up to 60 m scanning range, high‑density point‑cloud output. Excellent performance under dust, fog, strong sunlight and complex outdoor environments. 3‑year warranty for laser radar. - Complete Perception & Identification Options
- 7‑inch industrial capacitive touch control cabinet for smooth local operation;
- Full‑color high‑definition snapshot camera, colorful night‑time recording for every passing truck, 24‑hour continuous video recording, optional short‑video playback;
- High‑power high‑speed RFID reader, optional license plate recognition camera;
- Optional AI module for automatic material type classification.
- Outdoor‑friendly Human‑machine Interaction
High‑brightness outdoor LED display shows weighing results clearly even under direct sunlight for drivers to read. - Easy Deployment & Remote Management

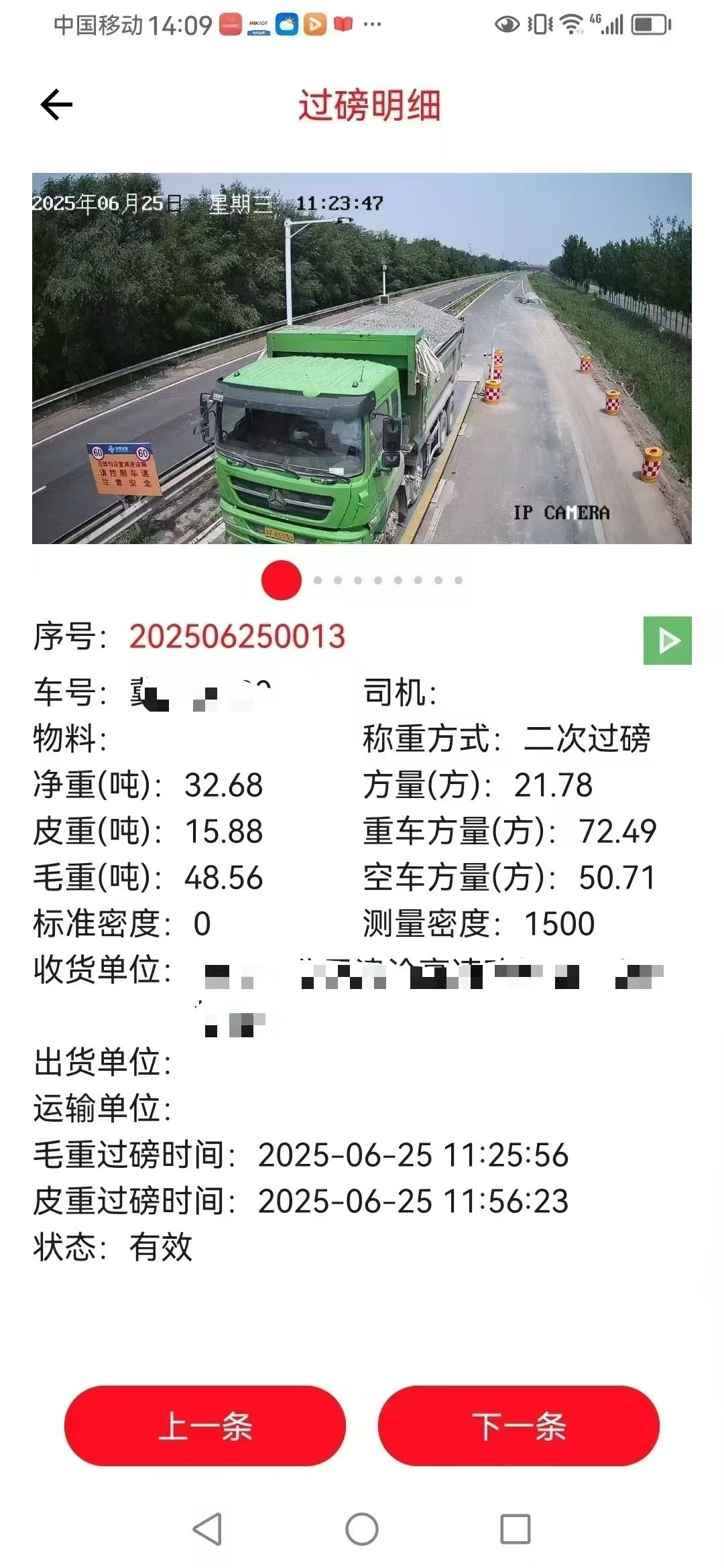

DC12V power supply, aviation plug connectors for plug‑and‑play installation without complex wiring. Real‑time remote data access, report statistics and parameter configuration supported on PC and mobile terminals.
Main Technical Specifications
| Item | Parameters |
|---|---|
| System Architecture | Industrial embedded Linux, fully self‑developed |
| Power Supply | DC 12V,10A; Total Power:80W; LiDAR Power:12W |
| Working Condition | Full outdoor open‑air deployment,‑30℃~60℃(customizable for extreme climate) |
| Snapshot Resolution | 1600×1200 |
| Vehicle Passing | 24‑hour non‑stop continuous passing |
| LiDAR Model | JXKJ300 (Patented product) |
| Laser Wavelength | 905 nm, Class1 eye‑safety(IEC60825‑1:2014) |
| Scanning Range | 40 m@10% reflectivity;60 m@80% reflectivity |
| Point Cloud Rate | 500,000 points/sec(whole system);300,000 points/sec(LiDAR) |
| Measurement Mode | Static high‑precision measurement |
| Volume Accuracy | ＜1% /＜2% /＜3% optional |
| Protection Class | IP67 |
| Data Interface | 100 BASE‑TX Ethernet |
| Warranty for LiDAR | 3 years |
Application Scenarios

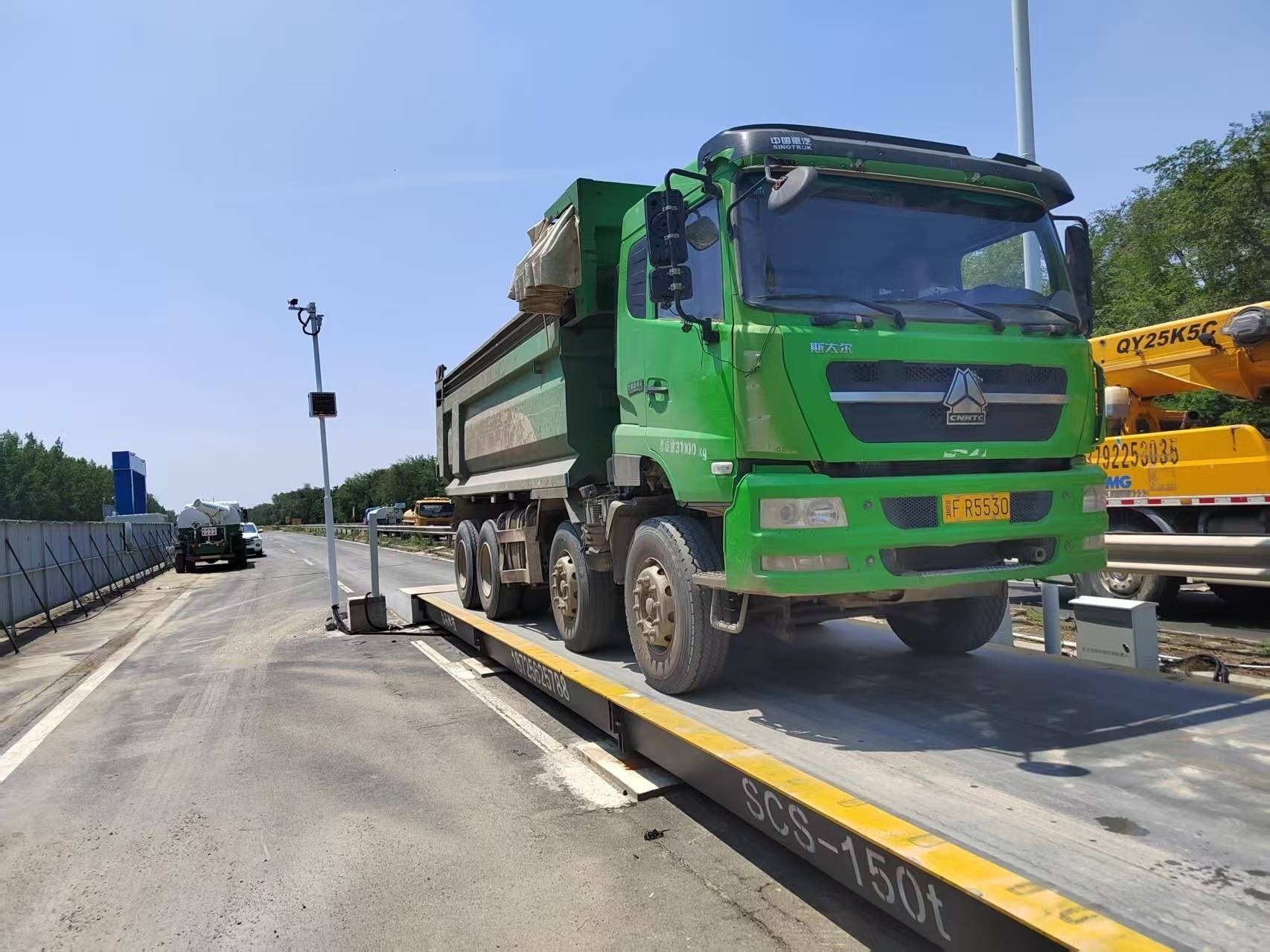

Mines, cement plants, metallurgy, chemical industry, construction‑material yards, waste‑disposal sites, ports and large industrial logistics parks.
